10KW 15KW 18KW 20KW 25KW 10-15-20 KW Air Cooled Laboratory Water Chiller

FOB Reference Price:Get Latest Price
$1,500.00 - $3,999.00 / Unit | 1 Unit/Units (Min. Order)
Model Number:
NovaChiller-18KW/20KW
Cooling Capability(kw):
18-20KW
Lead Time:
Quantity(Units) 1 - 5 >5
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Power(W):
18-20KW
Dimension(L*W*H):
1350*750*1440mm
Weight:
150Kg
Place of Origin:
Shanghai, China
Brand Name:
Senova
Voltage:
380V/50Hz, 3 Phase
Certification:
CE
Type:
Air-Cooled, Air cooled (Optional: Water cooled)
Condition:
NEW100%
Applicable Industries:
Laboratory & Industry
Product:
15KW 18KW 20KW 25KW 10-15-20 KW Air Cooled Laboratory Water Chiller
Model:
NovaChiller-18KW/20KW
Application:
Laboratory equipment cooling
Cooling capacity:
18-20KW
Refrigerant:
R134a/R407c/R410a
Temperature Range:
5°C-35°C (Customized: -70°C-35°C)
Evaporator style:
Stainless Steel Plate Hest Exchanger
Power Supply:
380V/50Hz, 3 Phase
Certiicate:
CE
After-sales Service Provided:
Free spare parts, Video technical support, Online support
Warranty:
14 Months
Supply Ability
Supply Ability:
500 Unit/Units per Month
Packaging & Delivery
Packaging Details
Plywood case
Port
Shanghai, China
Picture Example:
package-img
Lead Time :
Quantity(Units) 1 - 5 >5
Est. Time(days) 15 To be negotiated

10KW 15KW 18KW 20KW 25KW 10-15-20 KW Air Cooled Laboratory Water Chiller

18KW-20KW Air-Cooled Laboratory Water Chiller

Model:NovaChiller-18kW/NovaChiller-20kW

Product Description

Applications

18-20KW Industrial Air Cooled Laboratory Water Chiller is used to cool laboratory equipments such as graphite furnace atomic absorption meter, plasma spectrometer, plasma mass spectrometer, X-ray fluorescence spectrometer, X-ray diffraction and scanning electron microscopy and transmission electron microscopy.



There are 3 models included in this series:

NovaChiller-10KW, NovaChiller-12KW and NovaChiller-15KW.





Main Features

  • 18-20KW Industrial Air Cooled Laboratory Water Chiller
  • LED display of water temperature
  • World-class vortex compressor with stable performance of refrigeration
  • Automatic control and protection alarm device and error signal output
  • Adjustable water temperature and flow according to need
  • Stainless steel tank and water pump
  • Simple operation, long time continuous work
  • High efficiency compressor, safe and energy-saving
  • Reliable temperature controller
  • Totally enclosed scroll compressor
  • Condenser with aluminum-fin axial fan motor
  • Evaporator with stainless steel coil pipe
  • Temperature range: 5~35°C with control accuracy ±1°C
  • Specific temperature between 5°C and 35°C can be calculated according to inlet water temperature, outlet water temperature and water flow(m3/h)
  • Low water temperature -70~35°C can be customized
  • Optional: Water cooled water chiller

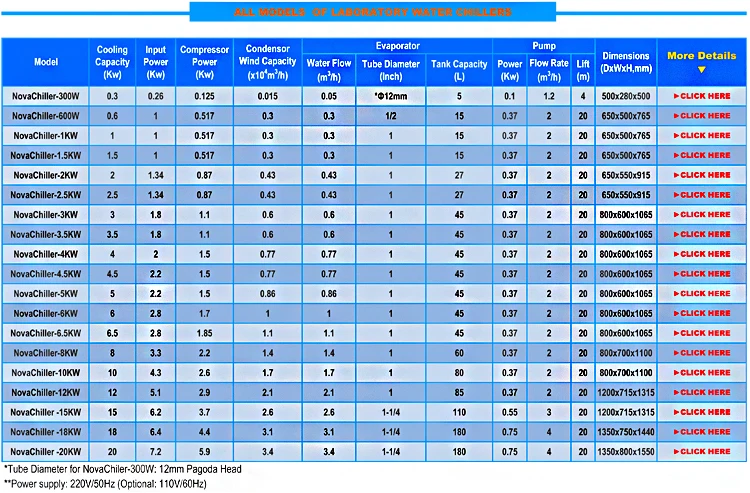

Specifications

ProductLaboratory air cooling low temperature water chiller
ModelNovaChiller-18KWNovaChiller-20KW
Cooling Capacity18KW20KW
Input Power6.4KW7.2KW
Compressor Power4.4KW5.9KW
Condenser Wind Capacity (x104m3/h)  3.13.4
Evaporator Water Flow (m3/h) 3.13.4
Evaporator Tube Diameter (Inch)1-1/41-1/4
Evaporator Tank Capacity (L)180180
Pump Power (Kw)0.750.75
Pump Flow Rate (m3/h)44
Pump  Lift  (m)       2020
Dimensions (DxWxH,mm)1350x750x14401350x750x1440
Power Supply380V/50Hz, 3 Phase





Update:

1) Models with cooling capacity from 0.3KW to 5KW:220V/50Hz (Optional: 110V/60Hz), single phase.

2)Other models with cooling capacity from 6KW to 20KW: 380V/50Hz, 3 Phase

Packing & Shipping

Packing

Shipment: By air courier, sea or air.

Standard package:  Each unit is pack in a Plywood case  with PET packing strip to protect the goods from external impact force during shipment.



Company Profile

With R&D and production base in Shanghai Premier Industry Zone as well as over 13 years of experience in international market for constant temperature laboratory equipment (thermal chamber and refrigeration equipment including Air Cooling Low Temperature Laboratory Water Chiller), Senova is the international sales center to serve our global distributors with both reliable products complying with international standard and after-sales service.



Photo: Factory Gate, Workshop and Office

 Product Album



Senova constant temperature laboratory equipment

Exhibitions

We attend laboratory equipment exhibitions, shows and fairs both in China and outside China to meet our new and old customers worldwide.



Certifications



ISO9001 Certificate,  CE Certificate and Third-Party Factory Verification Report

Our Services

After-sales service

     Technical support for any enquiry for troubleshooting

     Quick supply of spare parts ensured

     Service training provided if necessary



Warranty and support

     14-month standard warranty

     Prompt technical support and fast supply of spare parts from stock

     Maintaining stock for fast delivery of the goods for regular orders

     Opportunities for exclusive distributorship

     Enquiry forwarding

     New model and product launch

     Website download service of updated product information on  brochures, price, etc.

     Special price support for big project

     Exclusive tender authorization offered upon request

     Provision of promotion material like product images and minimum brochures

     Demo units at special price

     Award discount policy

     Sales and service training

     Training material

     Electronic user & service manual

     Exhibitions cooperation

FAQ

1. Are you a factory or trading company ?

 A : We are a factory with an international sales company specialized in support for global distributors. Please find our third-party factory audit (verfification) report shown above.



2 .Where is your company location ? How can we visit there ?

 A :Our factory is in Shanghai, the most booming city in China , 20Km away from Shanghai Pudong International Airport. Welcome to visit us !



3. What certification do you have?

 A : ISO 9001 and CE certificate.

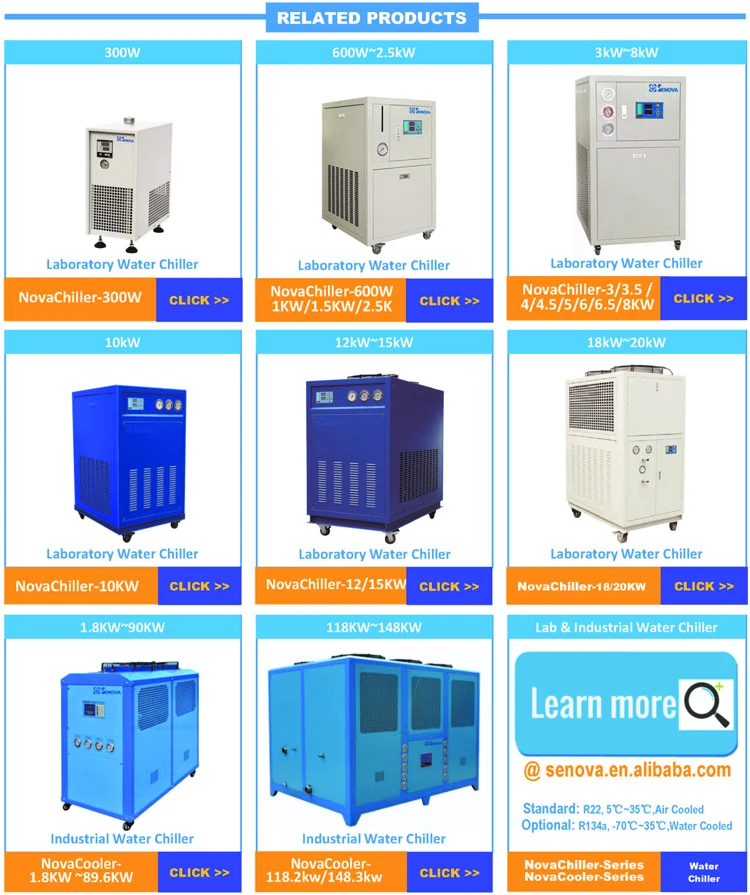

More Products
